美國福祿克FLUKE6531 and 6532-E-DWT Electronic Deadweight Tester Kits南通-揚州-上海-滁州-內蒙古-新疆有銷售鐵嶺-盤錦-湛江-蕭山-遼寧-淄博-寧夏-綿陽-云南-朝陽-陜西-青海-北海-唐山-吉林-.北京亦莊開發區-正規銷售處天津?yàn)I海開發區-秦皇島經濟開發區-太原經濟開發區-官方授權代理商呼和浩特經濟開發區-沈陽經濟開發區-營口經濟開發區-大連經濟開發區-長春經濟開發區-哈爾濱經濟開發區-虹橋經濟開發區-漕河涇開發區-連云港開發區-南通開發區-昆山開發區-南京開發區售后維修聯系方式-沈陽-長春-常州-連云港-淮安-淮陰-鹽城-揚州-徐州-宜興-江陰-官方網站-杭州開發區-蕭山開發區-溫州開發區-價格寧波開發區-蕪湖開發區-合肥開發區-福州開發區-福清融僑開發區-東山開發區-南昌開發區-威海開發區-煙臺開發區-青島開發區-鄭州開發區-北京-上海-淮安-連云港-昆山-浙江-廣東-河南-杭州-鄭州-廣州-深圳-佛山-惠州-廈門-汕頭-臺灣-香港-天津-西安-寶雞-杭州-溫州-常州-如何使用操作視頻杭州-嘉興-湖州-秦皇島-邯鄲-邢臺-保定-張家口-承德-廊坊-呼和浩特-包頭-鞍山-大慶-錦州-蘇州-昆山原理-無錫-鎮江-武漢開發區-長沙開發區-蘿崗區開發區-廣州南沙開發區-惠州大亞灣開發區-湛江開發區-南寧開發區-價格重慶開發區-使用說明書成都開發區-貴陽開發區-昆明開發區-拉薩開發區-西安開發區-蘭州開發區-西寧開發區-銀川開發區-烏魯木齊開發區-石河子開發區-使用說明書金橋出口加工區-蘇州工業園-哈爾濱哪家公司的優惠些-濟南-武漢-廣州-南寧-成都-西安-大連-寧波-廈門-青島-深圳生產廠家-多少錢寧波大榭開發區-廈門海滄投資區-海南洋浦開發區無錫-蘇州-南京-鎮江-揚州-南通-合肥-徐州-常熟-石家莊-太原進口品牌-呼和浩特-沈陽-長春-哈爾濱-南京-合肥-福州-南昌-濟南-鄭州-武漢-長沙-廣州-南寧-海口-成都-貴陽-昆明-拉薩-西安-蘭州-西寧-銀川-烏魯木齊-杭州
當前位置：首頁 > 產品中心 > 電子電工 > 計量校準

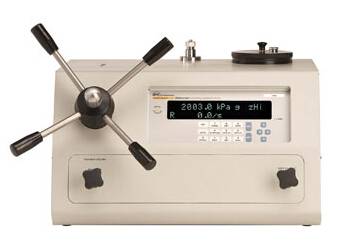

E-DWT Electronic Deadweight Tester Kits
品　牌：美國福祿克FLUKE
型　號：6531 and 6532
市場價：
促銷價：
主要技術指標：To RPM4-E-DWT:12 V dc 1.2 A

A powerful, complete hydraulic pressure calibration system to cover a wide workload

Fluke Calibration improved the hydraulic pressure calibration process with the introduction of E-DWT-H electronic deadweight tester. E-DWT-H is an electronic calibrator designed to deliver traditional hydraulic deadweight tester performance with digital measurement features and convenience. Some improvements offered by E-DWT-H include:

·         No weights to load and unload, transport or send out for calibration

·         Provides real-time pressure indication with no need to know and correct for local gravity or ambient temperature

·         No piston-cylinder changes

·         No significant sensitivity to level or vibration

·         Able to set and read any pressure value exactly, no minimum increment limited by smallest available masses; perfect for applications that require setting a nominal pressure precisely on the device under test and measuring it, such as analog gauge calibration

·         Operates in any unit of measure, switching easily from one unit to the next

 The E-DWT-H is at home in metrology and calibration labs, on the production floor or in the field. It can operate with a wide selection of test mediums, including Sebacate calibration fluid, mineral oil, water and other liquids. ± 0.02 % of reading total one-year measurement uncertainty rivals the best laboratory deadweight testers.

The E-DWT-H is used in the lab or instrument shop or can be taken into the field for performing in-situ calibrations and tests. This hydraulic pressure calibration system combines a high performance electronic reference pressure monitor and manually operated pressure generation and control hardware in a single, compact and rugged package. E-DWT-H offers the ease of use and precision of continuous, real time electronic pressure measurement with the simple and direct pressure control of high quality manual pressure hardware. E-DWT is named “electronic deadweight tester” because it is intended as a lightweight and easy to use, modern alternative to conventional piston-cylinder and weight based deadweight testers.

The E-DWT’s electronic reference pressure monitor is a special version of RPM4, designated RPM4-E-DWT. RPM4-E-DWT can be configured with one or two high precision quartz reference pressure transducers (Q-RPTs) with ranges from 7 MPa (1 000 psi) to 200 MPa (30 000 psi).

The RPM4-E-DWT is controlled locally by the operator using its front panel display, keypad and optional foot pedal or remotely by a computer using ASCII character command strings over its RS-232 interface.

RPM4-E-DWT uses an AutoRange feature to automatically select the most appropriate Q-RPT and to optimize the E-DWT-H setup to cover the desired range of operation. When two Q-RPTs are included, a half-turn valve isolates and protects the Lo Q-RPT from high pressure when the Hi Q-RPT is in use. Visual and audible indicators assist the operator in setting the shut off valve correctly.

The E-DWT-H includes the hardware necessary to fill and prime the system under test and generate and precisely adjust pressure up to 200 MPa (30 000 psi).

The E-DWT-H can be powered with an optional battery/charger pack for use in locations where AC power is not readily available.

High performance calibration made simple

Fluke Calibration electronic deadweight tester kits feature E-DWT-H configurations combined with the accessories needed for a complete calibration system. Model 6531 options feature E-DWT-H configurations with a single quartz reference pressure transducer (Q-RPT) to offer percent of reading performance from 10 % to 100 % of device full scale. Model 6532 options feature an additional Q-RPT to maximize workload coverage, with percent of reading performance from 1 % to 100 % of device full scale. An included vacuum fill kit allows the E-DWT to be filled with your choice of compatible fluid, while eliminating problematic air pockets from the test circuit. Also included is a test station adapter to mount just about any pressure device to be tested without using PTFE tape or wrenches. 6531 and 6532 kits provide all you need to perform high level hydraulic pressure calibration right out of the box.

·         Pressure ranges available to 200 MPa (30,000 psi)

·         ± 0.02 % of reading total one-year accuracy, 0.025 % for two years

·         Low torque variable volume allows for pressure generation and control up to 200 MPa (30,000 psi) with minimal physical effort

·         Built-in priming system to fill system with test fluid and purge unwanted air to assure smooth operation

·         Unique test port design eliminates the need for PTFE tape or wrenches. Adapters included for 1/8 in, 1/4 in, 3/8 in and 1/2 in NPT, 1/8 in, 1/4 in, 3/8 in and 1/2 in BSP, M20 x 1.5 and M14 x 1.5

·         Compatible with a wide range of liquids, including water. Vacuum fill kit included to fill the E-DWT with any compatible test medium

·         AutoTest™, AutoRange, ready/not ready indicator, onboard data capture and storage, overpressure alarm, RS-232 remote interface and other advanced features to simplify testing, improve safety and prevent calibration errors and damage to equipment

·         Optional foot switch accessory allows hands-free data collection when running AutoTests

·         Rechargeable battery pack and transport case options for field operation

General

Power requirements

To RPM4-E-DWT:

12 V dc 1.2 A

To AC to DC power supply:

100 V ac to 240 V ac, 50/60 Hz

Temperature range

Storage:

- 20 °C to 70 °C

Operating:

10 °C to 40 °C

Relative Humidity

Storage:

0 % to 100 %

Operating:

0 % to 70 %

Weight

1 Q-RPT:

12 kg (26 lb) approximate

2 Q-RPT:

14 kg (30 lb) approximate

Dimensions

E-DWT footprint:

41.4 cm W x 37.1 cm D (16.3 in x 14.6 in)

E-DWT height:

26.9 cm (10.6 in), 33.6 cm (13.2 in) to max variable volume handle height

Pressure range

Up to 200 MPa (30k psi), depending on configuration

Operating medium

All 6531 and 6532 E-DWT Kits are shipped dry, standard preparation. Can be filled with di-ethyl-hexyl sebacate, silicon oils, propylene glycol, fully fluorinated liquids, partially fluorinated liquids, isopropyl alcohol and distilled water or mineral oil.

Reservoir capacity

300 cc (18 in3)

Variable volume displacement

3 cc (0.18 in3), 200 MPa (30,000 psi) maximum

Filling and priming pump displacement

3.7 cc (0.23 in3)

TEST pressure connection

DH500 female, 200 MPa (30k psi) maximum working pressure. Adapters included for 1/8 in, 1/4 in, 3/8 in and 1/2 in NPT, 1/8 in, 1/4 in, 3/8 in and 1/2 in BSP, M20 x 1.5 and M14 x 1.5. Adapter maximum working pressure is 140 MPa (20k psi). Note: DH500 is a gland and collar type fitting for 6 mm (1/4 in) coned and left hand threaded tubes equivalent to AE F250C, HIP HF4, 9/16-18 UNF, etc.

Pressure Limits

Maximum Working Pressure:

Range of RPM4-E-DWT monitor’s Hi Q-RPT

Maximum priming pump pressure:

700 kPa (100 psi)

Maximum Working Pressure:

with Lo Q-RPT selected: Range of RPM4-E-DWT monitor’s Lo Q-RPT

Communication ports:

RS-232 (COM1, COM2)

·

Pressure measurement

Warm up time

15 minute temperature stabilization recommended from cold power up

Normal Operating Temperature Range

10 °C to 40 °C (50 °F to 104 °F)

Resolution

Default: 0.01 % of active range
User adjustable to 1 ppm of Q-RPT maximum or 10 ppm of active AutoRange, whichever is larger

Precision1

± 0.018 % of reading or 0.0018 % of Q-RPT span, whichever is greater

Predicted Stability2

One year:

± 0.0075 % of reading

Two year:

± 0.015 % of reading

Measurement Uncertainty3

One year:

± 0.02 % of reading or 0.002 % of Q-RPT span, whichever is greater

Two year:

± 0.025 % of reading or 0.0025 % of Q-RPT span, whichever is greater

·         1. Combined linearity, hysteresis, and repeatability. Precision does not include stability or calibration reference uncertainty.
2. Predicted Q-RPT measurement stability limit (k=2) assuming regular use of AutoZero function and short term stability between rezeroing.
3. Maximum deviation of the Q-RPT indication from the true value of applied pressure including precision, predicted stability with rezeroing, temperature effect from 10 oC to 40 oC and calibration uncertainty (assumes calibration reference uncertainty of ±0.005 % of reading, k=2), combined and expanded (k=2) following the ISO “Guide to the Expression of Uncertainty in Measurement.

型號

描述

6531-7M

E-DWT-H A7M, 0.7 to 7 MPa, 100 to 1,000 psi

Includes:

·        E-DWT-H Electronic Deadweight Tester with power supply and operating manual

·        Vacuum liquid fill kit

·        Test station quick-mount fitting

·        NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        Metric adapters: M20 x 1.5 and M14 x 1.5

6531-14M

E-DWT-H A14M, 1.4 to 14 MPa, 200 to 2,000 psi

Includes:

·         E-DWT-H Electronic Deadweight Tester with power supply and operating manual Vacuum liquid fill kit

·        Test station quick-mount fitting

·        NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        Metric adapters: M20 x 1.5 and M14 x 1.5

6531-20M

E-DWT-H A20M, 2 to 20 MPa, 300 to 3,000 psi

Includes:

·         E-DWT-H Electronic Deadweight Tester with power supply and operating manual

·        Vacuum liquid fill kit

·        Test station quick-mount fitting

·        NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        Metric adapters: M20 x 1.5 and M14 x 1.5

6531-40M

E-DWT-H A40M, 4 to 40 MPa, 600 to 6,000 psi

Includes:

·         E-DWT-H Electronic Deadweight Tester with power supply and operating manual

·        Vacuum liquid fill kit

·        Test station quick-mount fitting

·        NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        Metric adapters: M20 x 1.5 and M14 x 1.5

6531-70M

E-DWT-H A70M, 7 to 70 MPa, 1,000 to 10,000 psi

Includes:

·         E-DWT-H Electronic Deadweight Tester with power supply and operating manual

·        Vacuum liquid fill kit

·        Test station quick-mount fitting

·        NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        Metric adapters: M20 x 1.5 and M14 x 1.5

6531-140M

E-DWT-H A140M, 14 to 140 MPa, 2,000 to 20,000 psi

Includes:

·         E-DWT-H Electronic Deadweight Tester with power supply and operating manual

·        Vacuum liquid fill kit

·        Test station quick-mount fitting

·        NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        Metric adapters: M20 x 1.5 and M14 x 1.5

6531-200M

E-DWT-H A200M, 20 to 200 MPa, 3,000 to 30,000 psi

Includes:

·         E-DWT-H Electronic Deadweight Tester with power supply and operating manual

·        Vacuum liquid fill kit

·        Test station quick-mount fitting

·        NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        Metric adapters: M20 x 1.5 and M14 x 1.5

6532-70M

E-DWT-H A70M/A7M, 0.7 to 70 MPa, 100 to 10,000 psi

Includes:

·         E-DWT-H Electronic Deadweight Tester with power supply and operating manual

·        Vacuum liquid fill kit

·        Test station quick-mount fitting

·        NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        Metric adapters: M20 x 1.5 and M14 x 1.5

6532-140M

E-DWT-H A140M/A14M, 1.4 to 140 MPa, 200 to 20,000 psi

Includes:

·        E-DWT-H Electronic Deadweight Tester with power supply and operating manual

·        Vacuum liquid fill kit

·        Test station quick-mount fitting

·        NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        Metric adapters: M20 x 1.5 and M14 x 1.5

6532-200M

E-DWT-H A200M/A20M, 2 to 200 MPa, 300 to 30,000 psi

Includes:

·        E-DWT-H Electronic Deadweight Tester with power supply and operating manual

·        Vacuum liquid fill kit

·        Test station quick-mount fitting

·        NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in

·        Metric adapters: M20 x 1.5 and M14 x 1.5

通用配件:


配件

描述

Case

加固且可重復使用的模制裝運外殼（部件號3338097）

電池組/充電器

帶有充電器的12 VDC電池（部件號3071049）

腳踏開關

遠程[ENTER]腳踏開關（部件號3070940）

COMPASS for Pressure

自動執行測試、數據采集、報告與設備資產管理的軟件



，，
